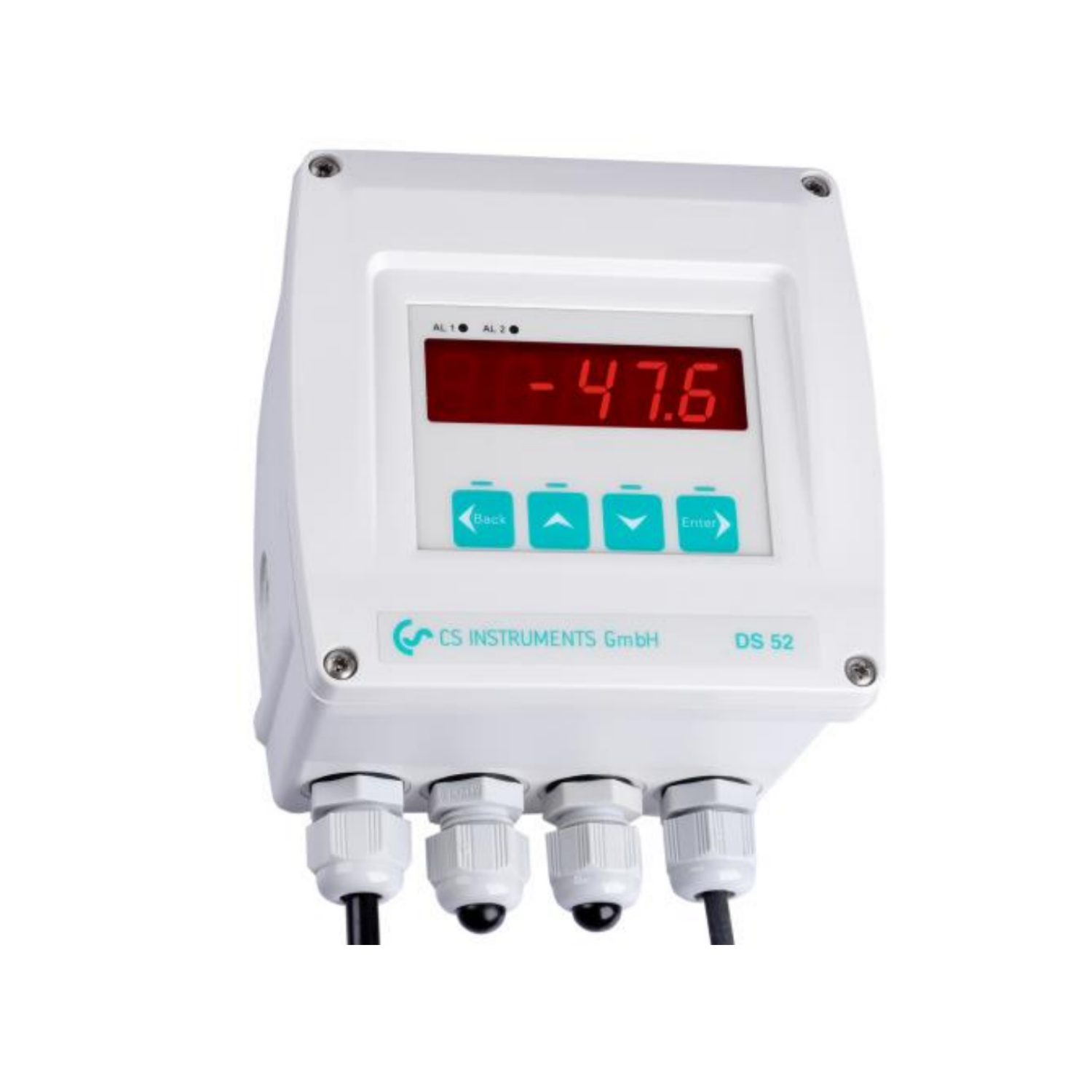

Dew Point Measurement for Desiccant Dryers Display DS 52

The measuring range of -80...20°Ctd makes the dew point set DS 52 with alarm the ideal dew point monitor with analog output 4...20 mA.

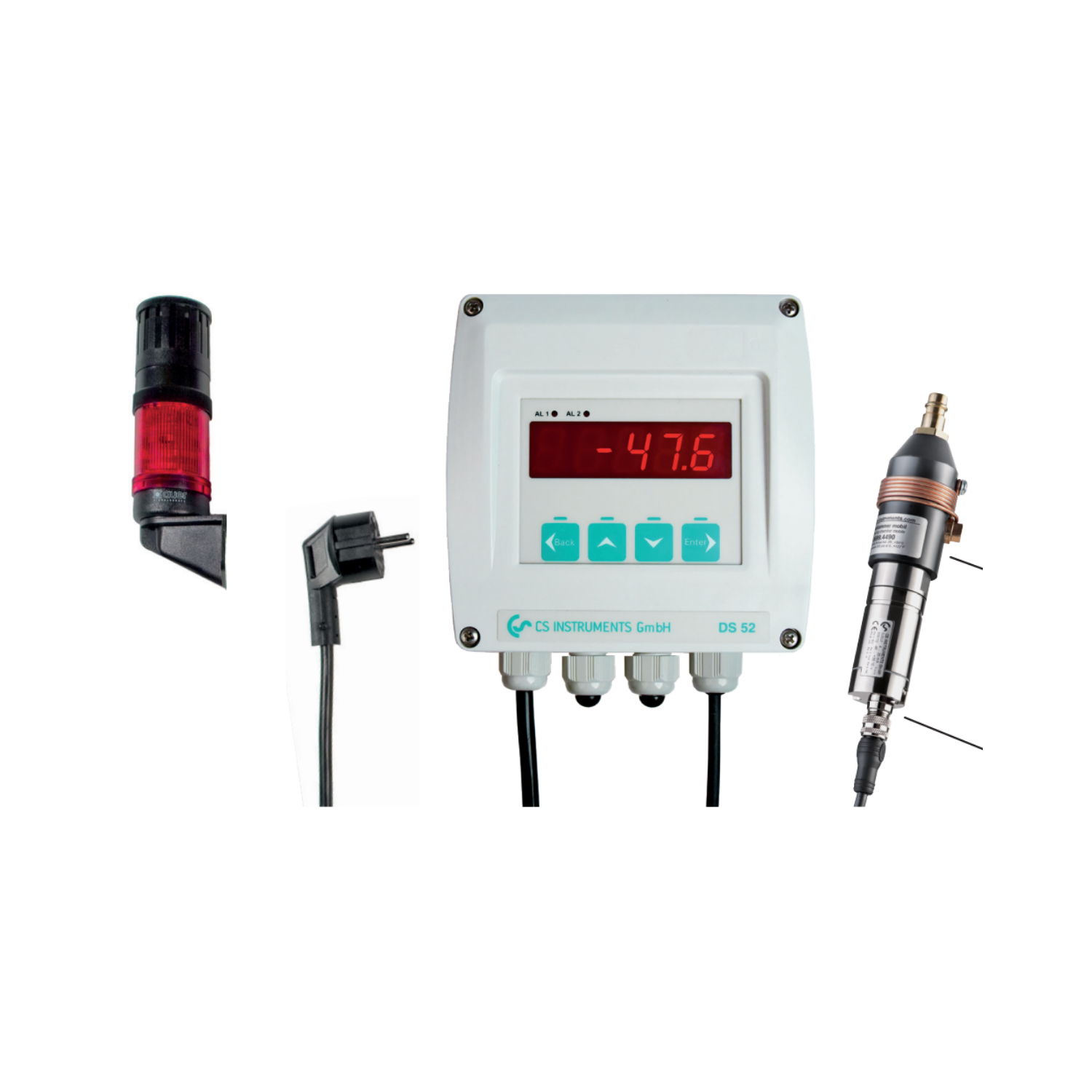

The dew point sensor FA 510 is extremely long-term stable and can be installed and removed quickly and easily under pressure by means of the screwable measuring chamber including quick coupling. The dew point set is supplied ready for plug-in, i.e. everything is completely wired. The alarm values can be freely adjusted.

Special features of dew point measuring DS 52-Set for desiccant dryers

• System ready for plug-in: Everything is completely wired
• No time-consuming studying of the instruction manual
• 2 alarm contacts (230 VAC, 3 A) pre-and main alarm freely adjustable
• 4...20 mA analog output
• Option alarm unit: Buzzer and continuous red light
